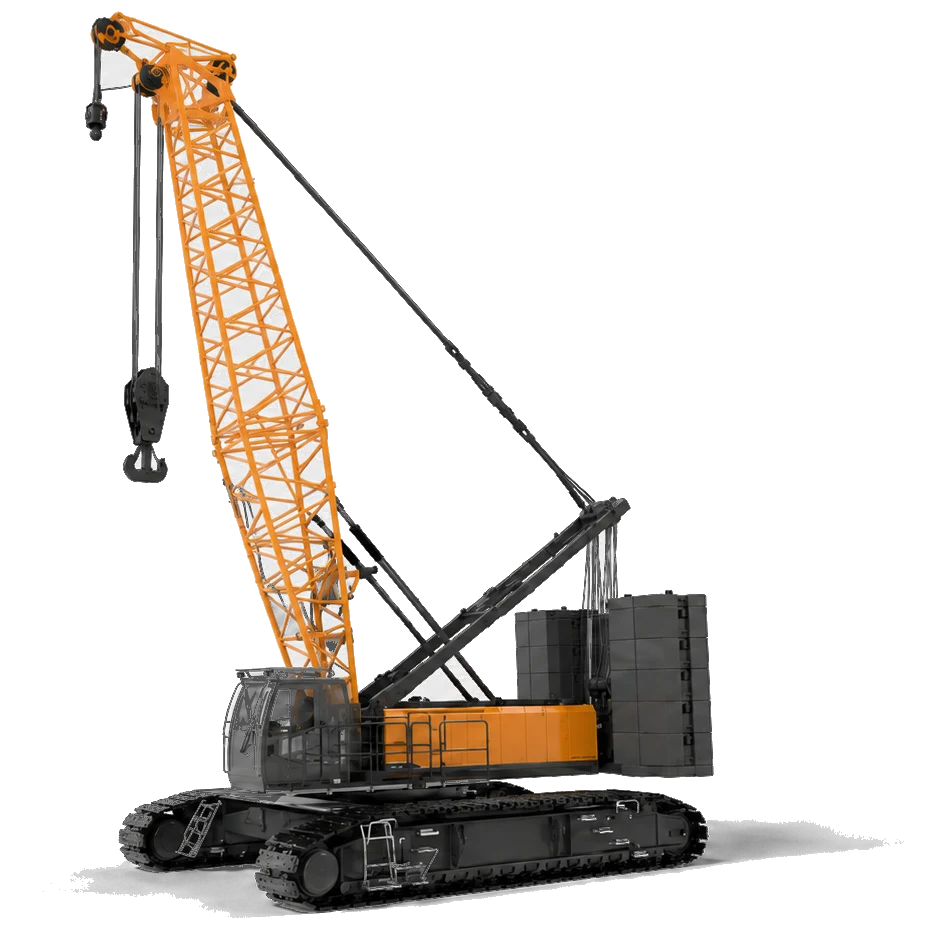

PVE AMERICAN · Electric crawler crane
EC275-1
The battery-electric version of the CC275-1. The same platform, boom systems and 275-US-ton capacity, with a zero-emission electric drive that works quiet and clean on site. Want it configured to your needs? Contact us to discuss the options.
275 US t capacity
295 ft main boom
Electric
Features
Features EC275-1
Modular design
Modular design for optimized performance and efficient maintenance through innovative layout of hydraulic and electric systems.
Powerful lifting capacity
Max. lifting capacity of 275 US t, main boom up to 295 ft, luffing jib combination up to 197 ft.
100% traveling with load
Strong traveling traction and traveling stability bring the advantages of the crawler crane into play to perfection.
Specifications
Key specifications
US units. Preliminary data shared with the CC275-1; electric drivetrain specifications follow with the brochure.
Max load capacity
275 US t
Main boom
up to 295 ft
Drive
Electric
Fixed jib configuration
up to 118 ft
Luffing jib configuration
up to 197 ft
Line pull, main hoist
13.5 t
Rope diameter
26 mm
Rope speed
400 ft/min
Operating weight, basic boom
225 t
Transport weight, base machine
43 t
Register your interest
The EC275-1 is coming soon: the battery-electric version of the CC275-1 with zero local emissions. Leave your details and our team will keep you posted on final specifications, pricing and the delivery schedule, with a place in the delivery queue when orders open.
