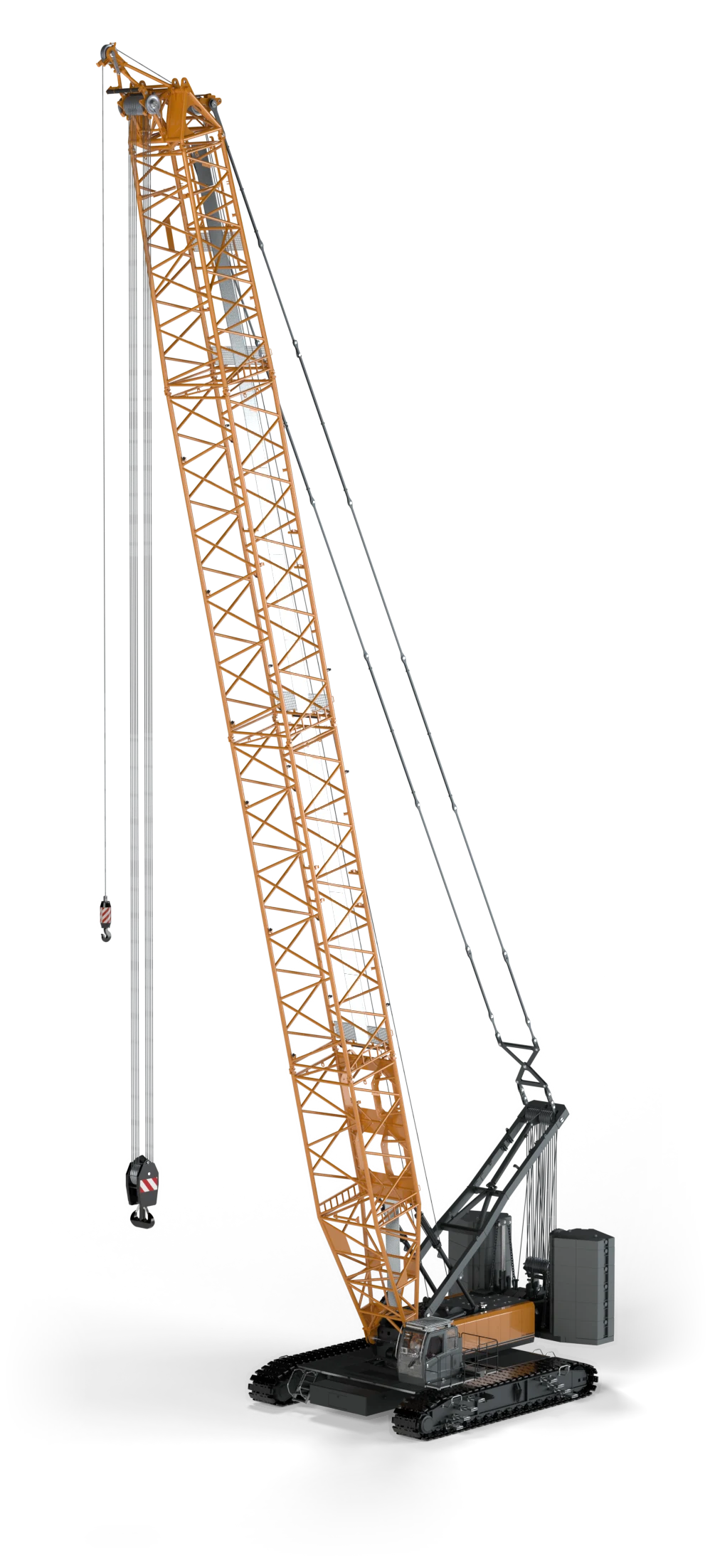

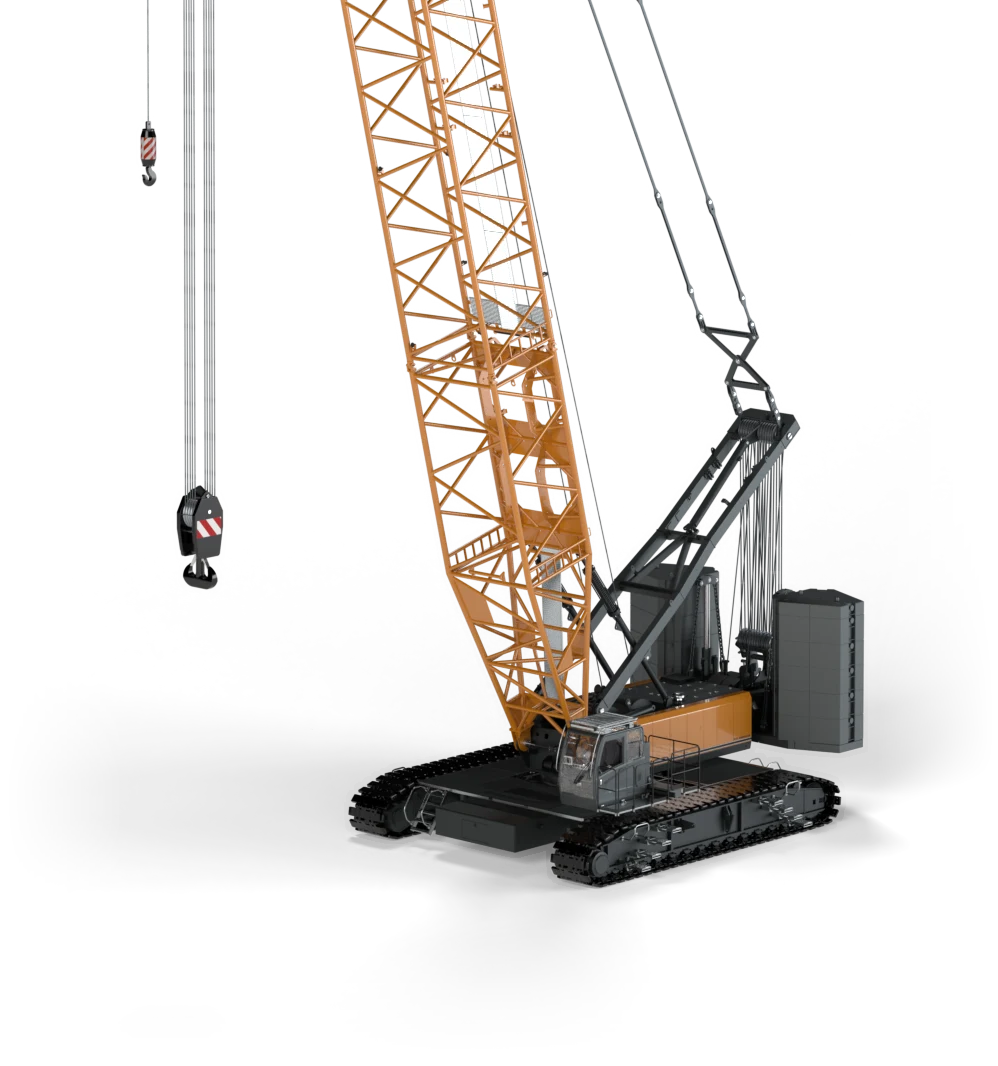

PVE AMERICAN · Lattice boom crawler crane
CC330-1
Crawler cranes with a lattice boom are often used for heavy lifting on construction projects and in the erection of wind turbines. Our clean diesel CC330-1 with lattice boom pairs a 330-ton maximum capacity with good transportability and cost-efficiency. Want it configured to your needs? Contact us to discuss the options.
330 t capacity
302 ft main boom
Cummins X12
Features
Built for heavy lifting, easy to move.

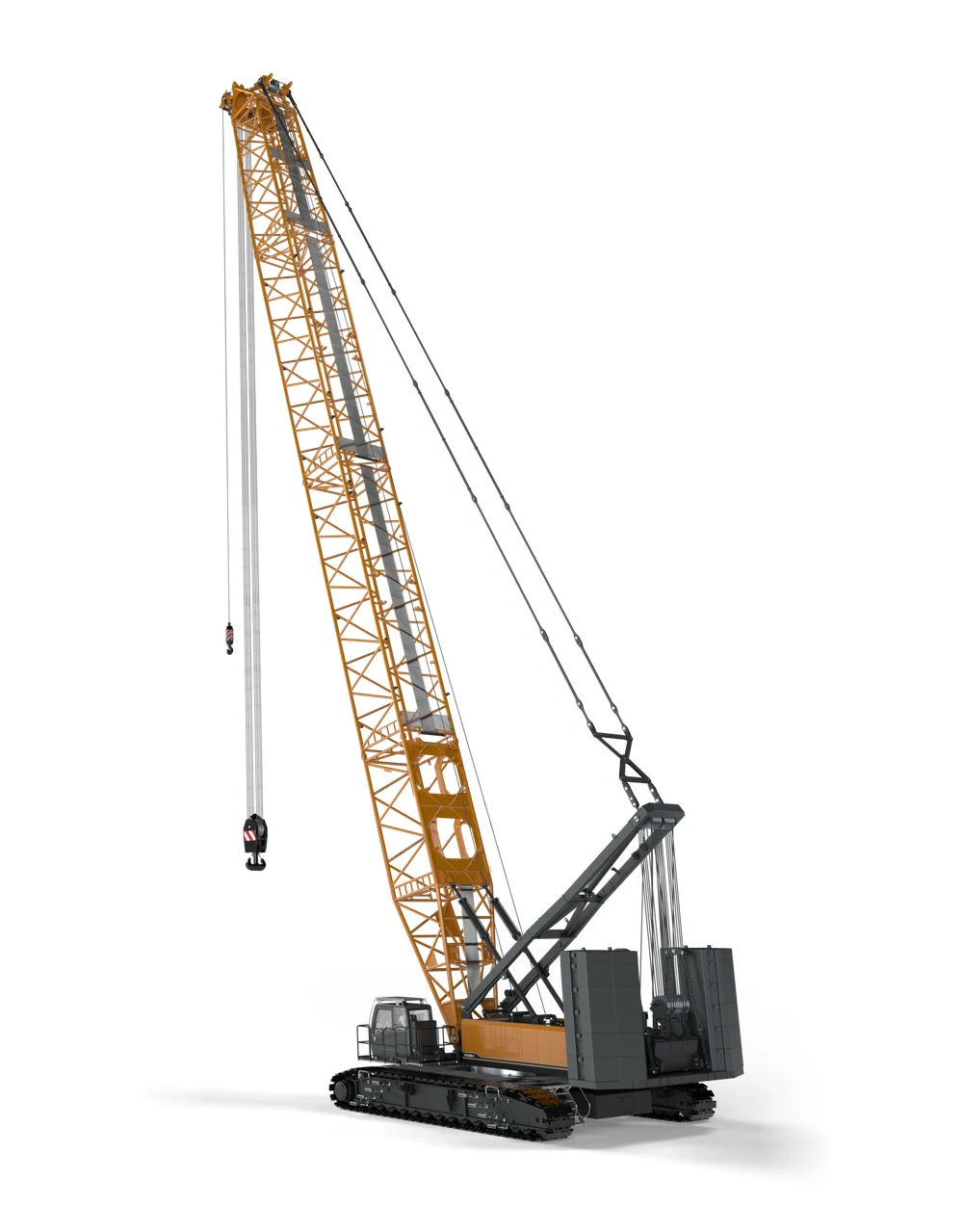

Lattice boom
Heavy, long-reach lifts with a modular lattice boom.

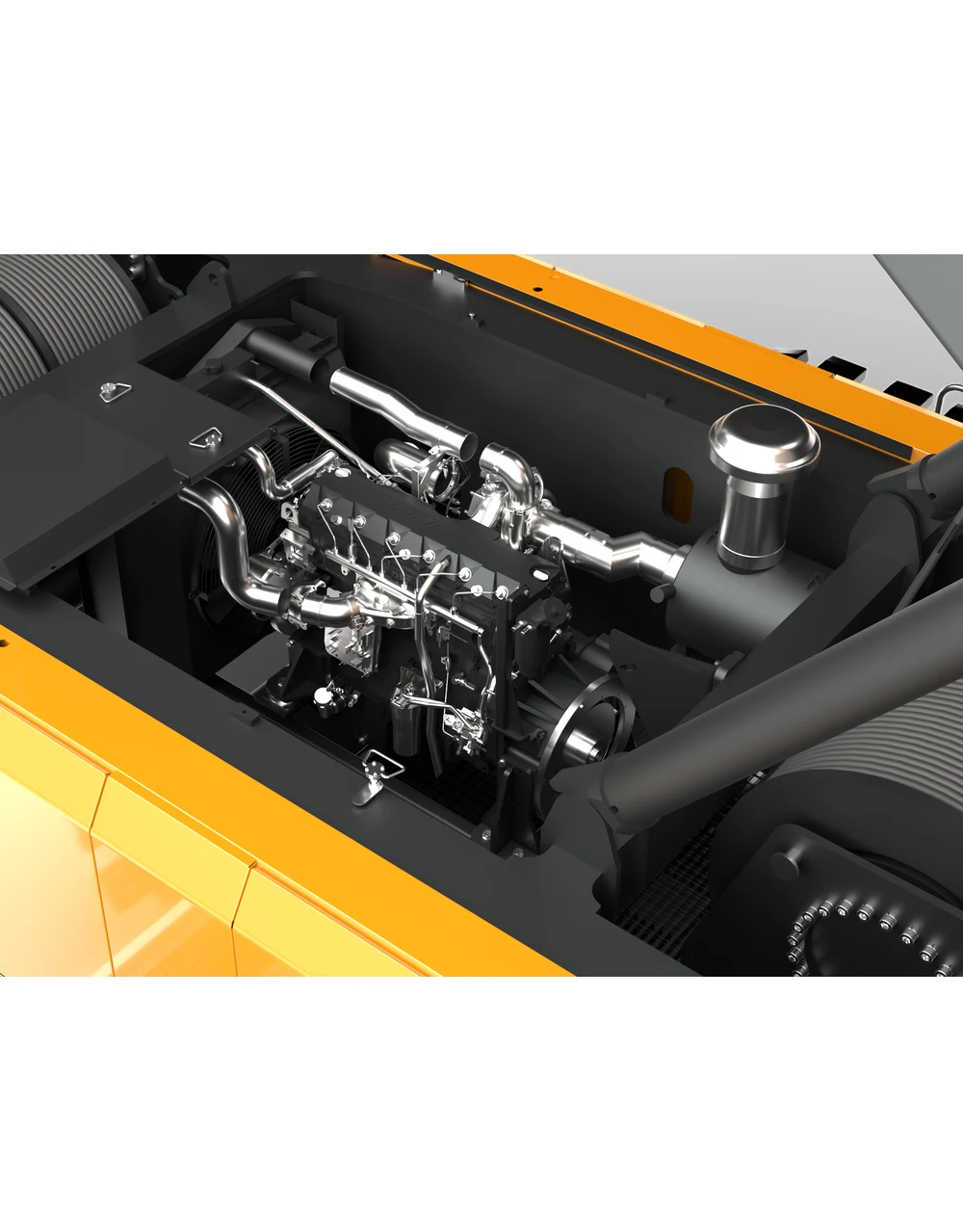

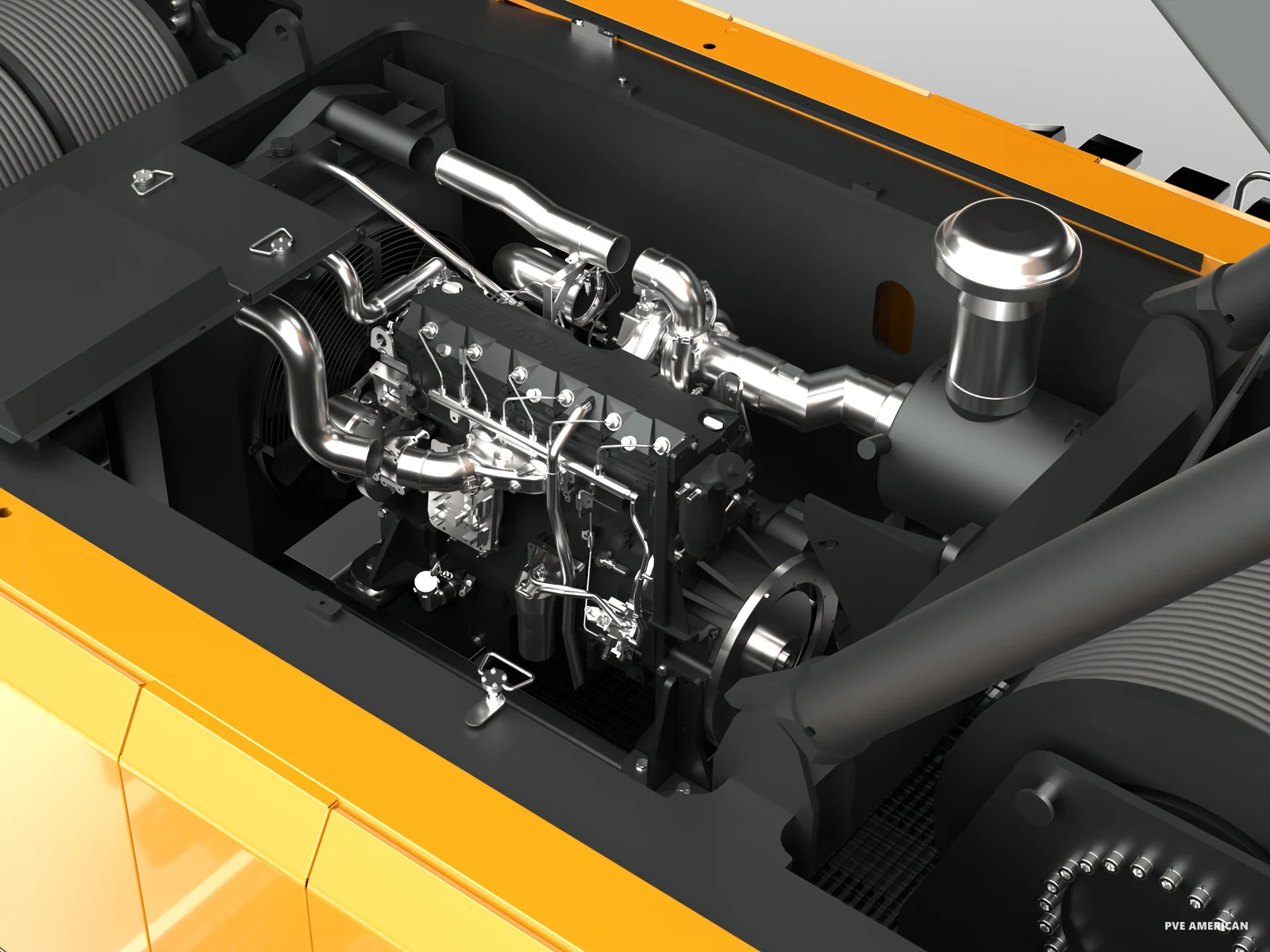

Clean diesel
Cummins X12 power, Stage V / Tier 4F clean.
Self-erecting
Rigs itself. Faster setup, lower mobilization cost.
Multiple boom systems
When configuring the CC330-1 crawler crane there are several boom options that can be selected. This gives the user advantage in being adaptive to the required conditions for different jobs. Options include the main boom, fixed jib, luffing jib, wind jib and aux jib.
Applications

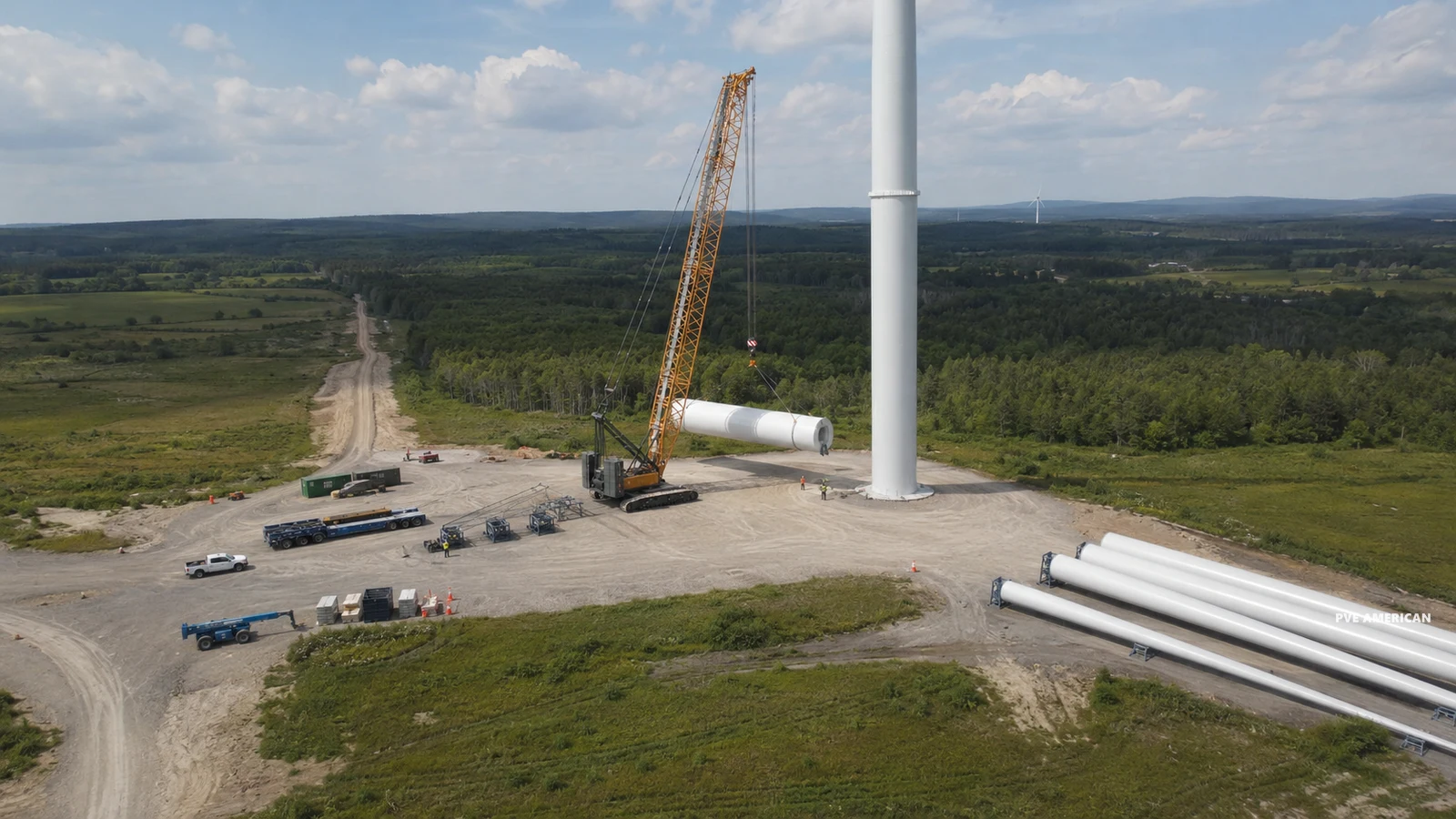

Wind turbine erection
Erecting wind turbines is where the CC330-1 is at home. The wind configuration runs a 282 ft (86 m) main boom with a 23 ft (7 m) wind jib, lifting up to 80 t at the tip. Send us your hub height and we will confirm the configuration.

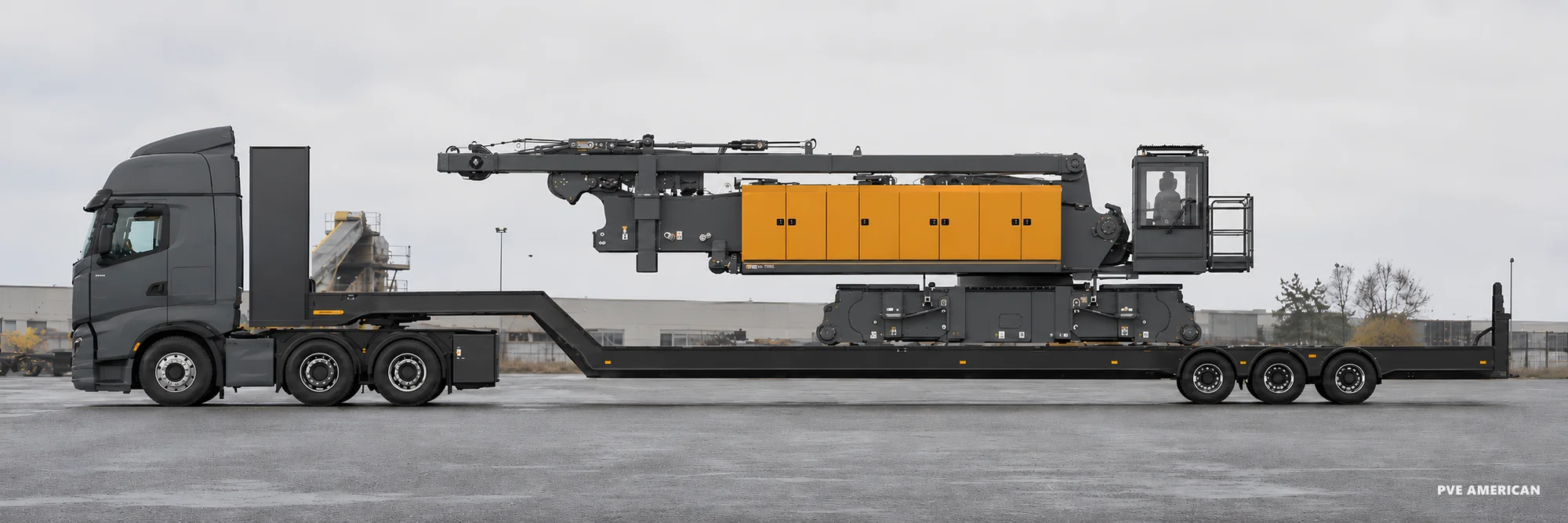

Transport
Transport plan
The CC330-1 splits into road-transportable loads: the uppercarriage travels as a single unit, with boom sections, crawler tracks and counterweights following on standard trailers. The transport plan lists every load with its dimensions and weights, ready for permits and route planning.
Download transport plan
Specifications
Key specifications
US units. Full data sheet in Downloads.
Max load capacity
330 t
Main boom
65 to 302 ft
Engine make
Cummins X12
Emission
Stage V / Tier 4F
Rope speed
394 ft/min
Fixed jib configuration
39 to 118 ft
Wind jib configuration
20 ft
Power rating
336 kW (456 hp)
Fuel tank
210 gal
Line pull, 1st layer
27.5 t
Line pull, 7th layer
16.5 t
Rope diameter
28 mm
Luffing jib configuration
69 to 236 ft
Aux jib, 2 sheaves (45.0 t)
5 ft
Optional
Free-fall
Downloads
Spec sheets & documents
Want to know more about this crane?
Send us your lift requirements and our team will come back with a configuration, lead time and price for the CC330-1. We usually reply within one business day.
