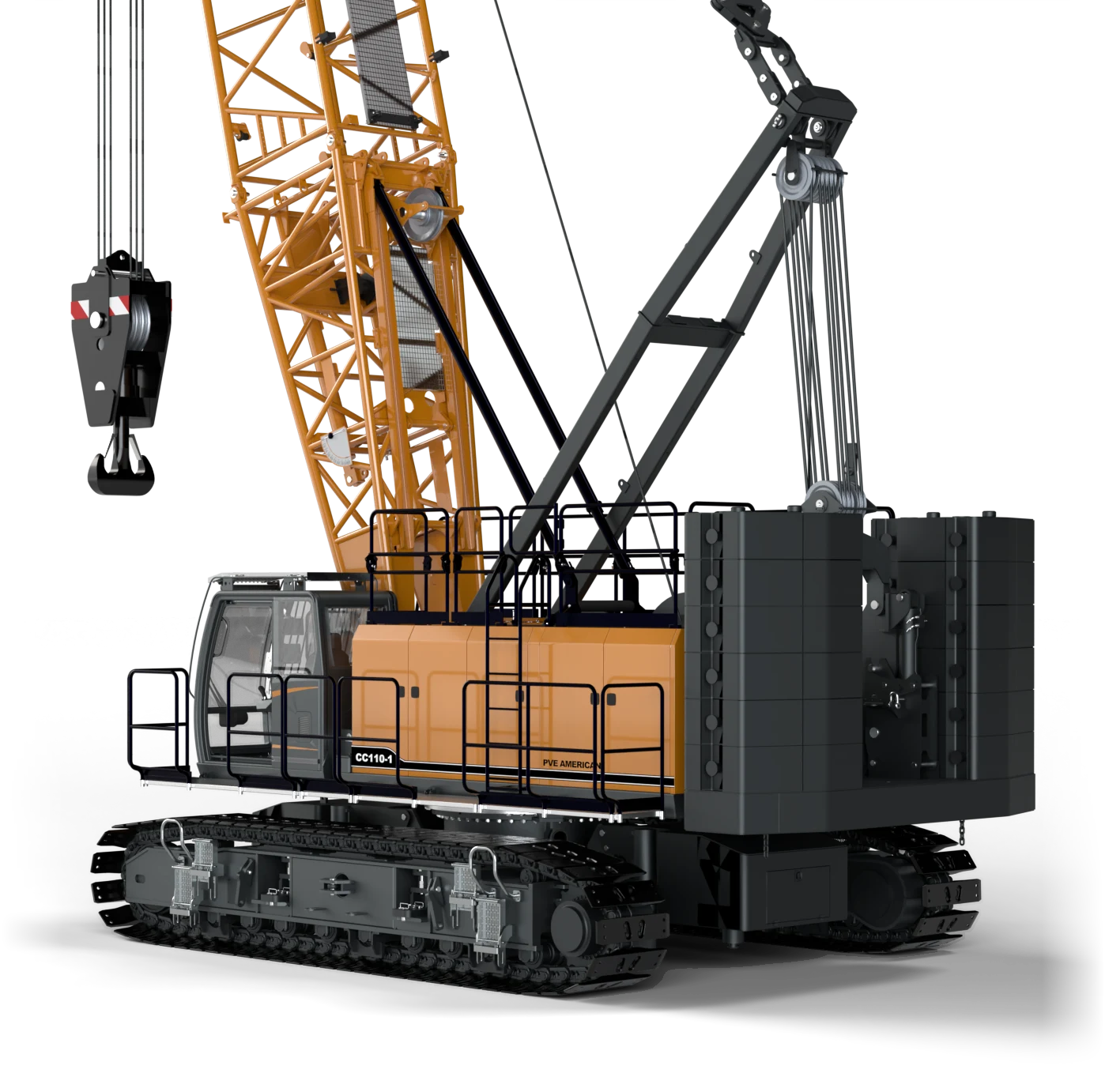

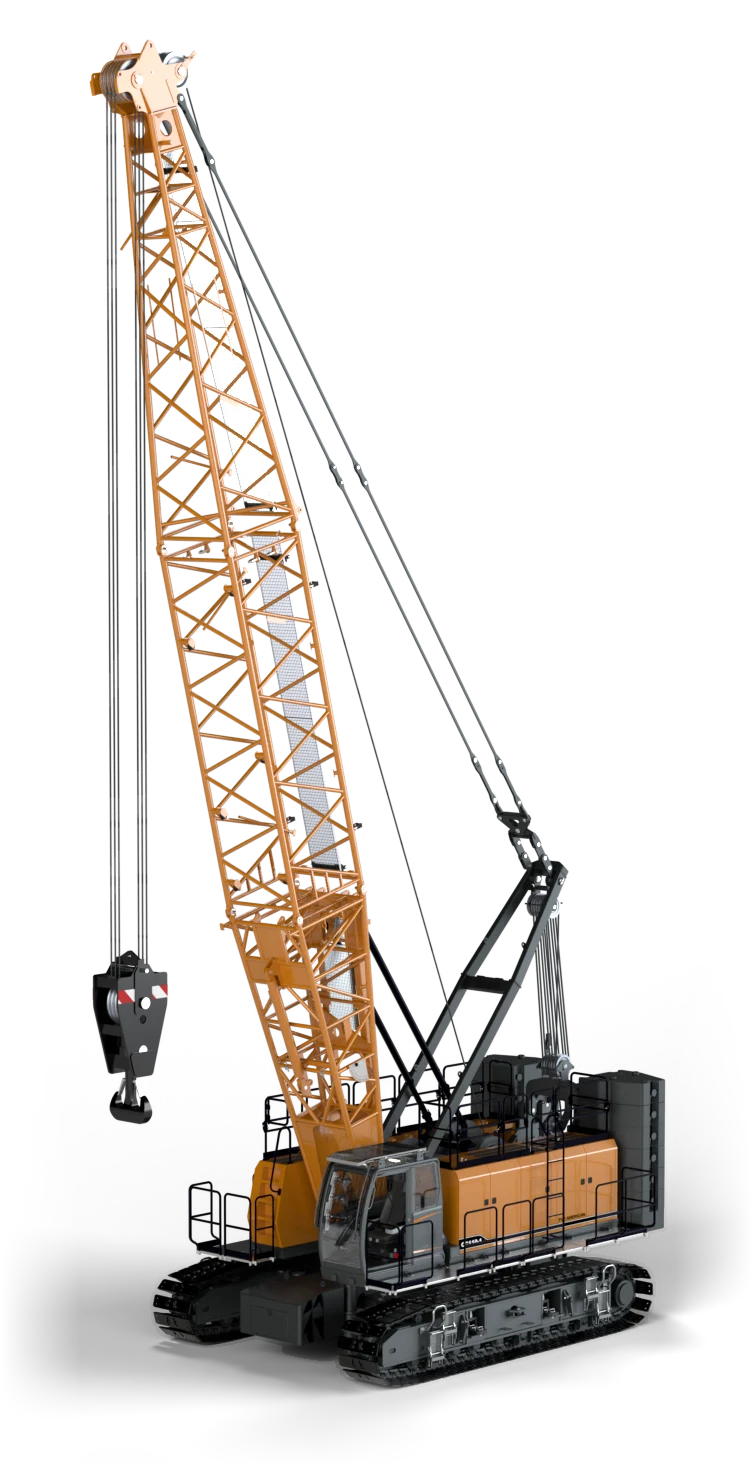

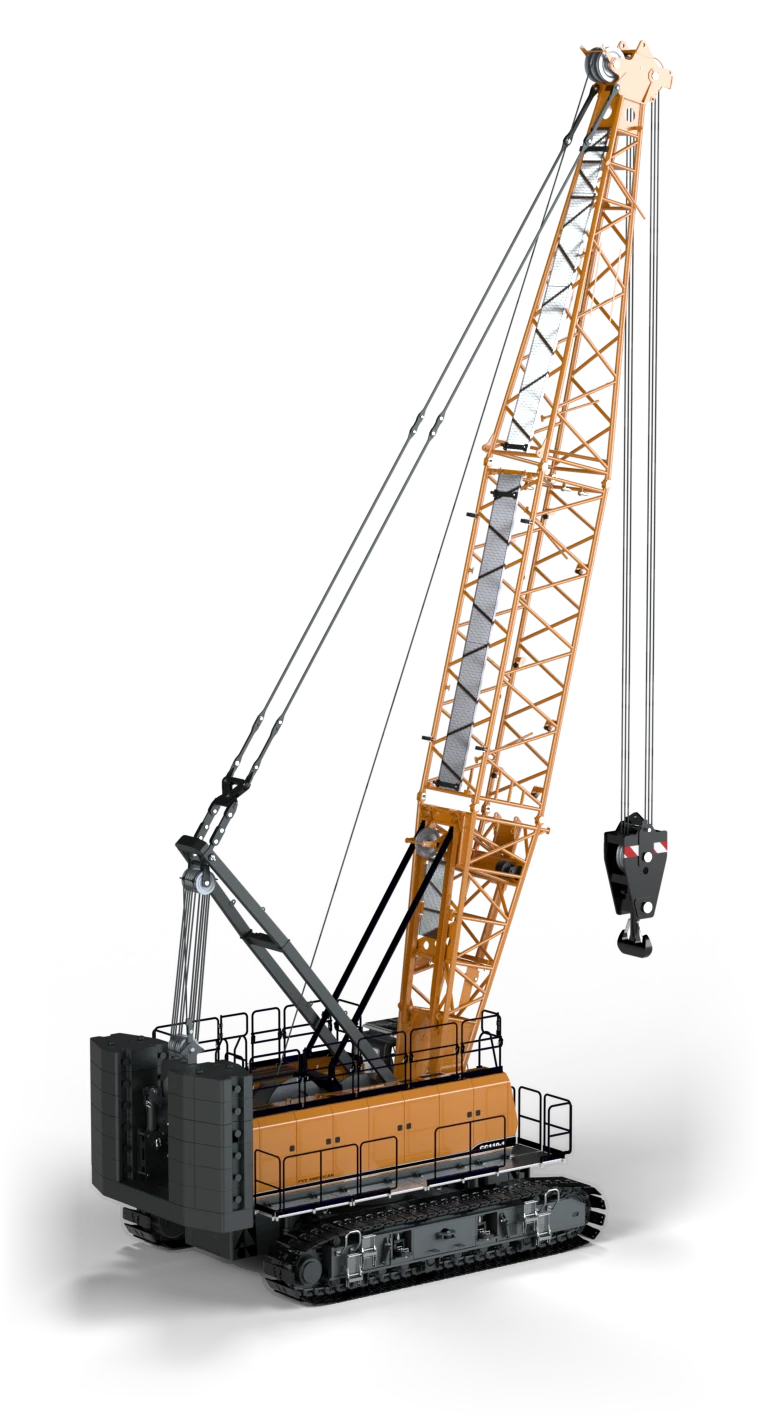

PVE AMERICAN · Lattice boom crawler crane
CC110-1
Crawler cranes with a lattice boom are often used for heavy lifting on construction projects and in the erection of wind turbines. Our clean diesel CC110-1 with lattice boom pairs a 110-ton maximum capacity with good transportability and cost-efficiency. Want it configured to your needs? Contact us to discuss the options.
110 t capacity
200 ft main boom
Cummins L9
Features
Built for heavy lifting, easy to move.

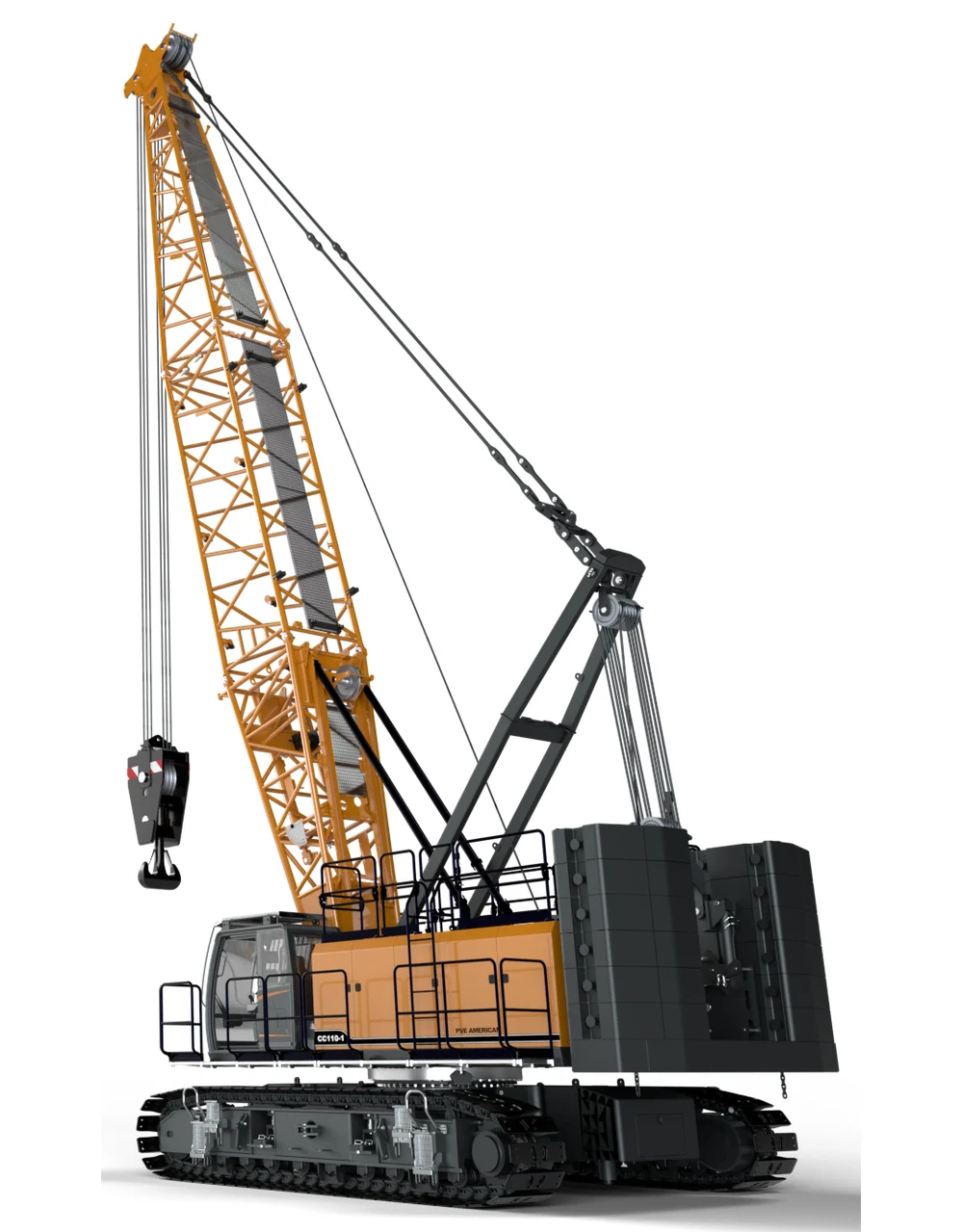

Lattice boom
Heavy, long-reach lifts with a modular lattice boom.

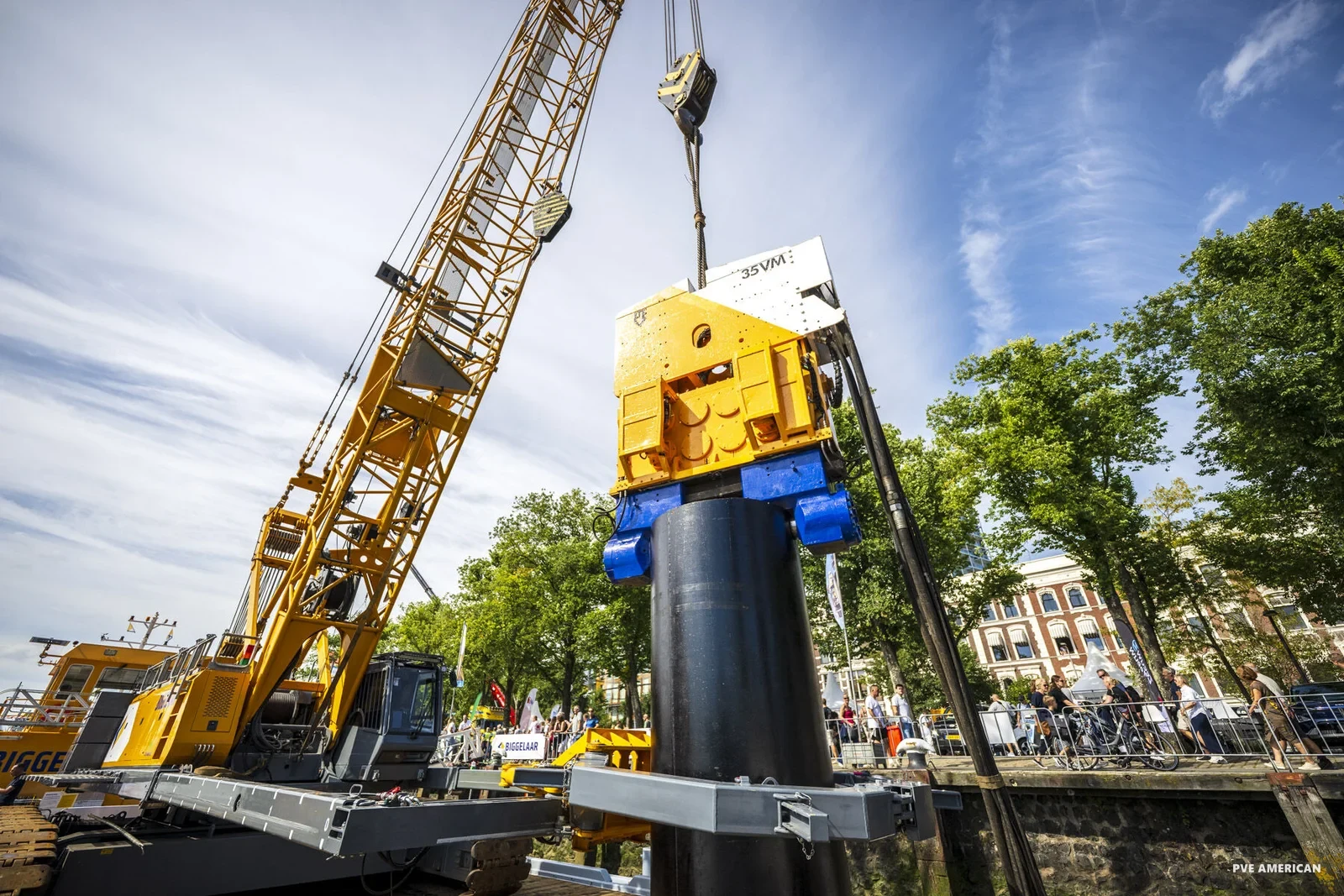

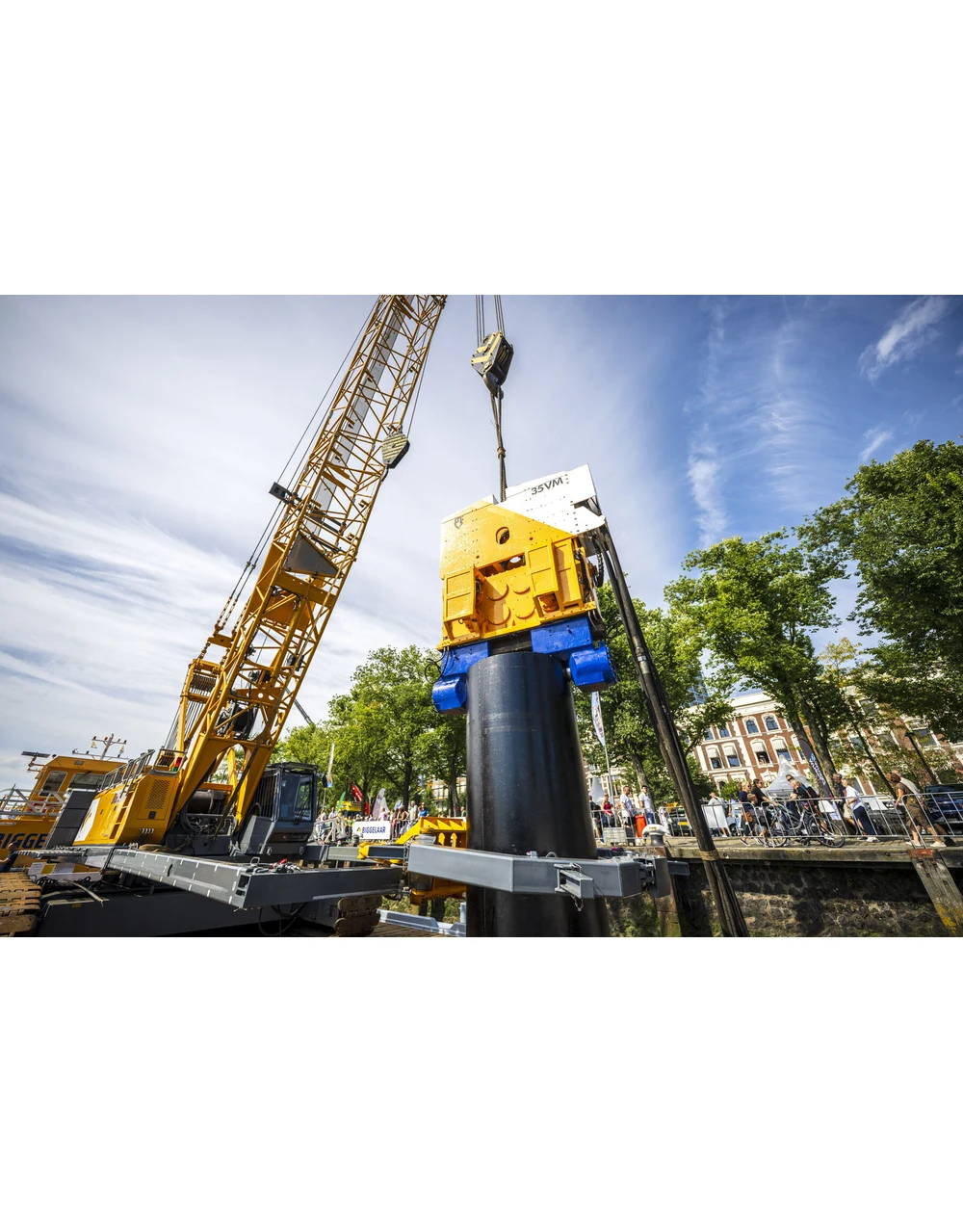

Foundation equipment
Runs vibro hammers and other foundation attachments for piling work.

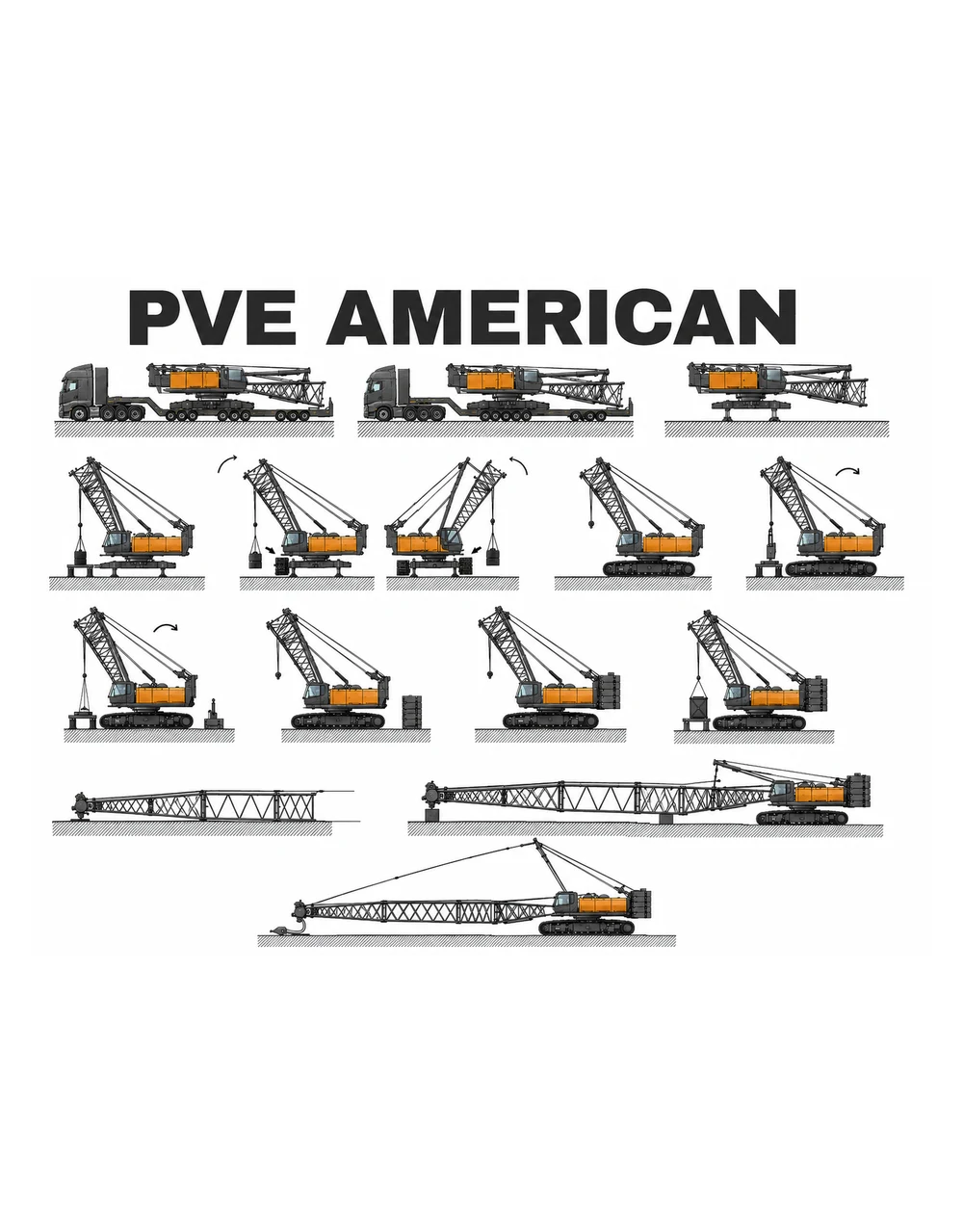

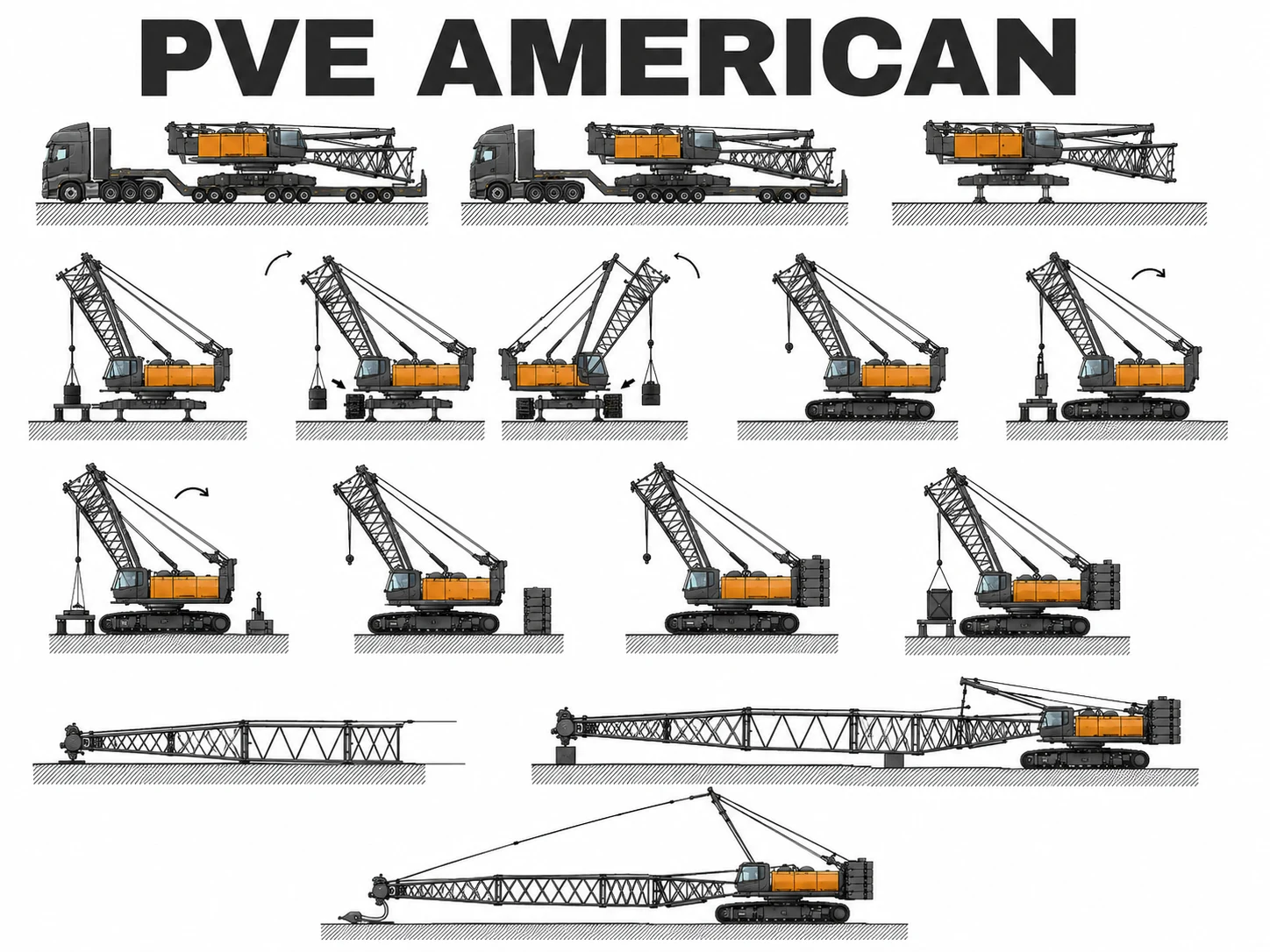

Self-erecting
Rigs itself. Faster setup, lower mobilization cost.

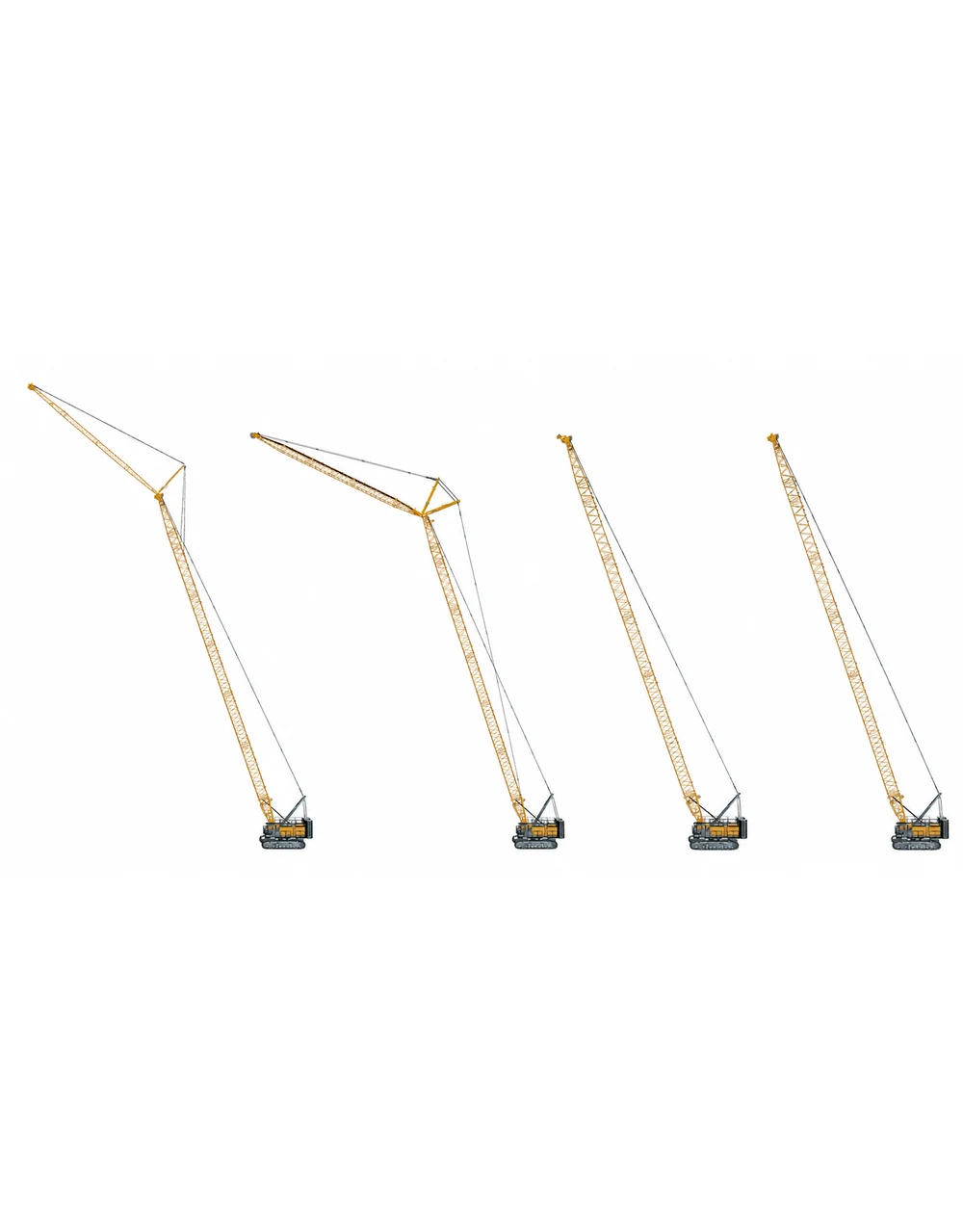

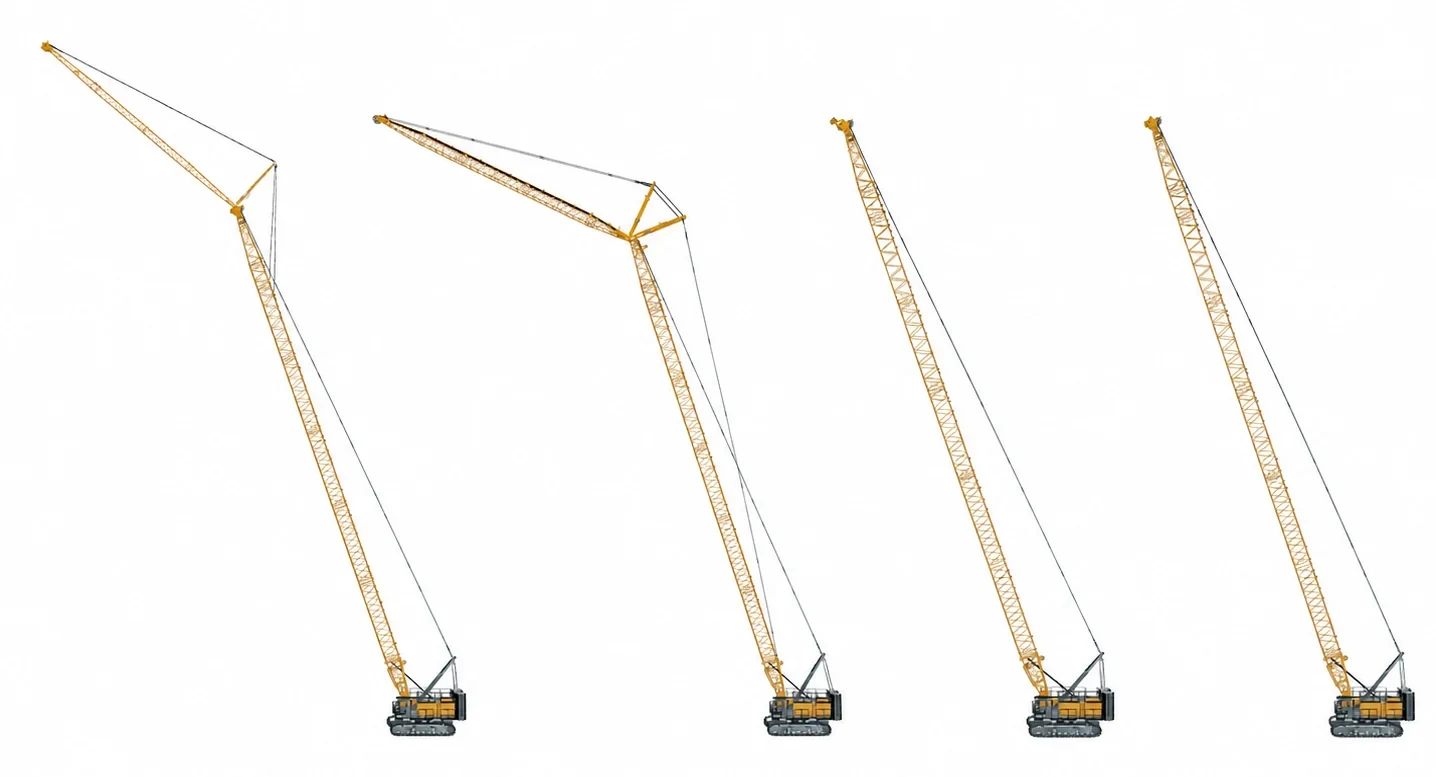

Multiple boom systems
When configuring the CC110-1 crawler crane there are several boom options that can be selected. This gives the user advantage in being adaptive to the required conditions for different jobs.

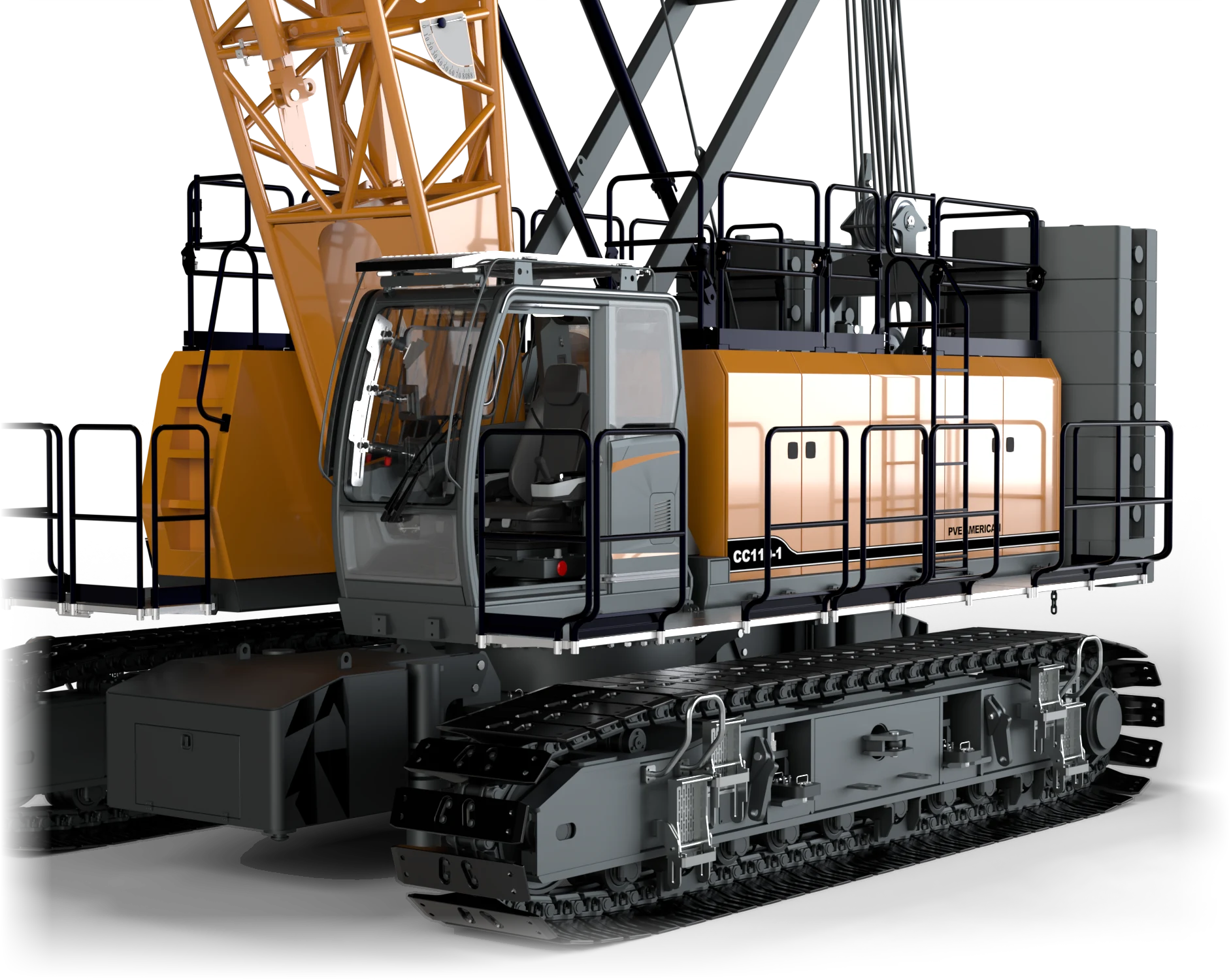

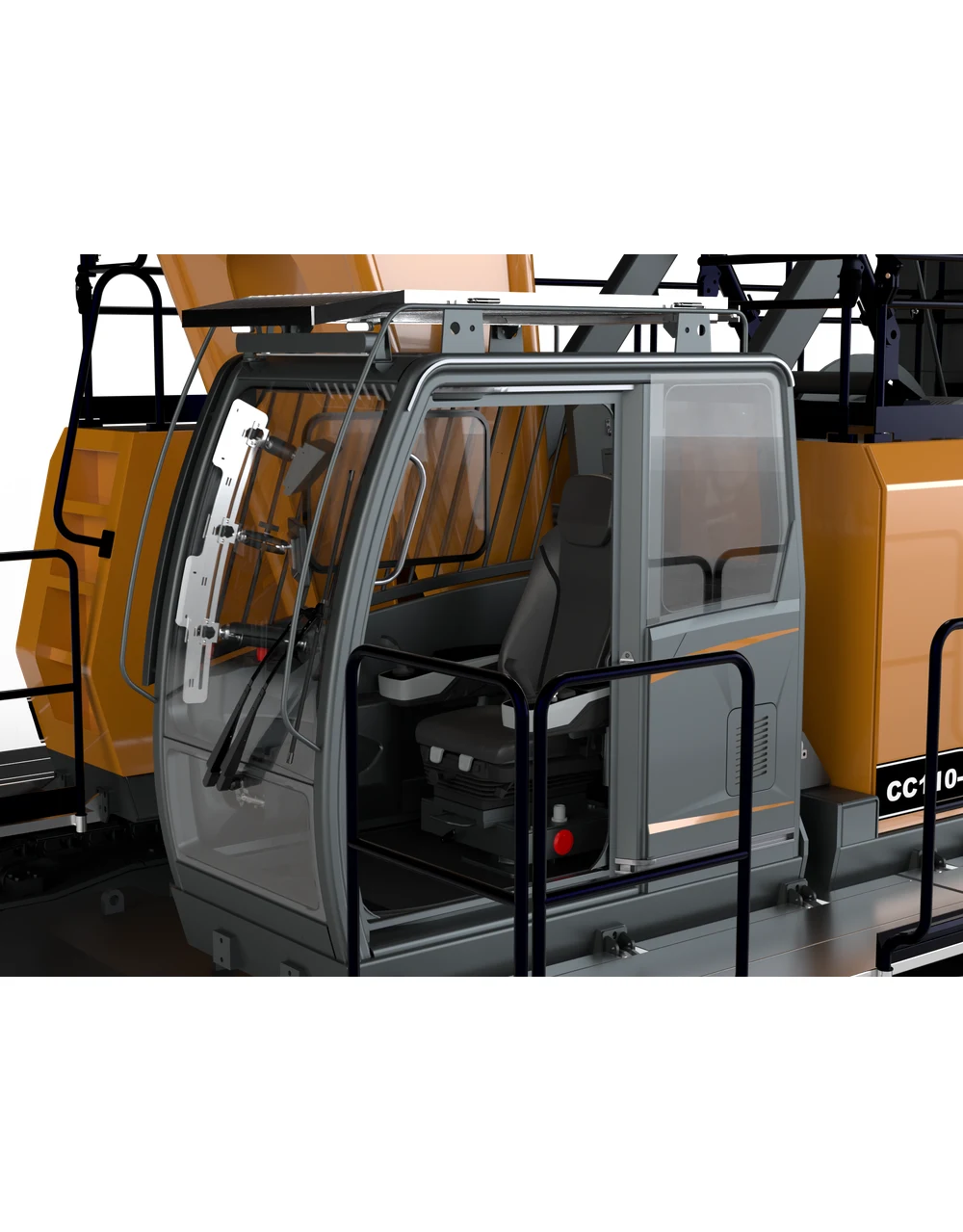

Operator Cabin
The air suspended operator seat with integrated joysticks gives the operator maximum comfort. The joysticks are electric-hydraulic controls that gives the operator very precise performance.
Specifications
Key specifications
US units. Full data sheet in Downloads.
Max load capacity
110 t
Main boom
43 to 200 ft
Engine make
Cummins L9
Emission
Stage V / Tier 4F
Rope speed
394 ft/min
Fixed jib configuration
29 to 60 ft
Power rating
261 kW (355 hp)
Fuel tank
132 gal
Line pull, 1st layer
20.0 t
Line pull, 5th layer
15.0 t
Rope diameter
26 mm
Luffing jib configuration
49 to 138 ft
Optional
Free-fall
Downloads
Spec sheets & documents
Want to know more about this crane?
Send us your lift requirements and our team will come back with a configuration, lead time and price for the CC110-1. We usually reply within one business day.
